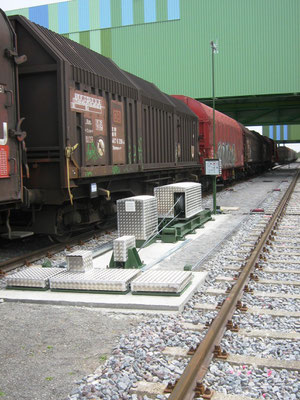

Cable-operated shunting device with lateral suspension device

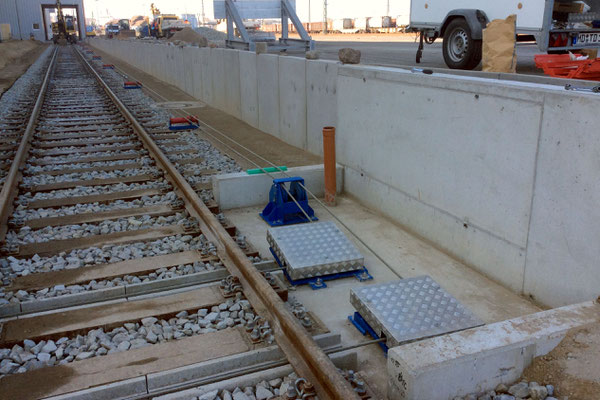

- arrangement next to the track above and under floor
- tractive power up to 40 kN (approx. 800 t shifting mass)
- shunting zone up to 250 m
- shunting speed
-
- load travel 0 ... 0,4 m/s
- no-load travel 0 ... 0,8 m/s
| type | SRA 20 | SRA 30 | SRA 40 |
| max. tractive power (kN) | 20 | 30 | 40 |
| cable diameter (mm) | 14 | 16 | 18 |
| driving power (kW) | 9 | 15 | 18,5 |
