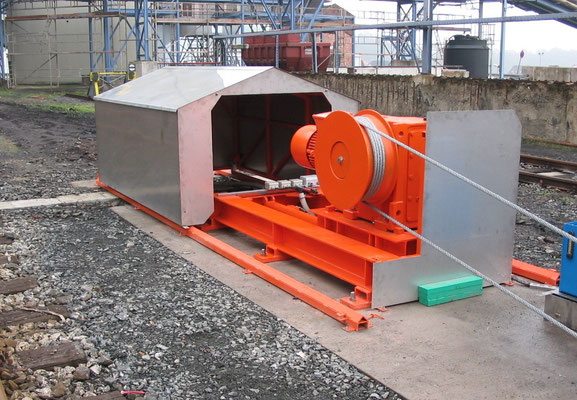

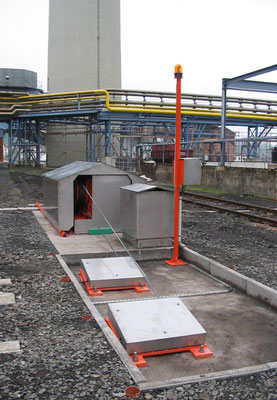

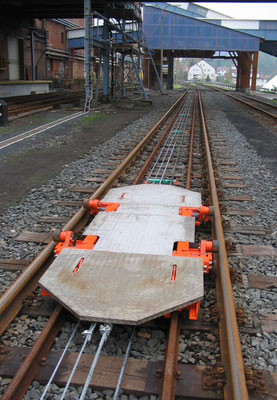

Cable-operated shunting device with wheelset carriage
- passable through rail vehicles
- automated shifting process is possible; moving-in and moving-out of the pushing rolls is possibleat every point of the shunting zone

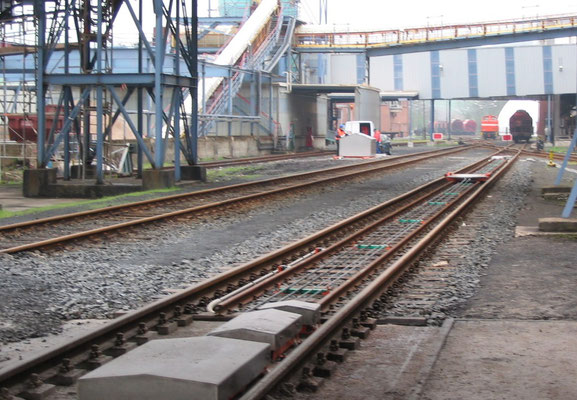

- guide of the wheelset carriage in the rail base or on auxiliary rails
- tractive power up to 30 kN (approx. 600 t shifting mass)
- shunting zone up to 120 m
- shunting speed
-
- load travel 0 ... 0,3 m/s
- no-load travel 0 ... 0,6 m/s
| type | SRA 20 | SRA 30 |
| max. tractive power (kN) | 20 | 30 |
| cable diameter (mm) | 14/12 | 16/12 |
| driving power (kW) | 11 | 15 |
